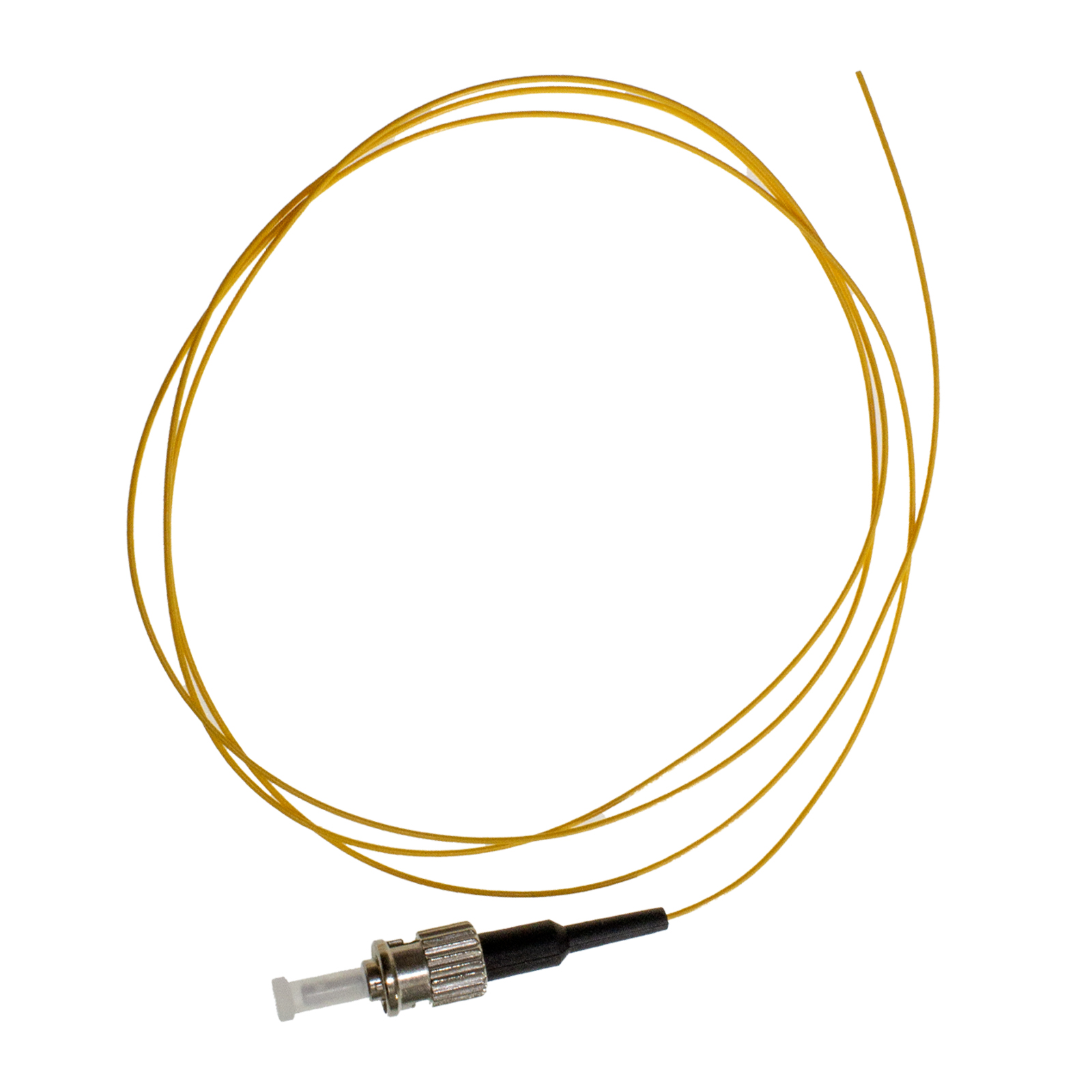

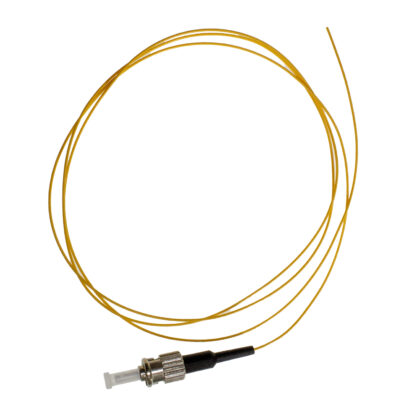

Pigtail ST/UPC SM G657A1 SX 0.9mm OFNR 1M Yellow, tight buffer

Buy Fiber Optic Pigtail ST/UPC SM G657A1 SX 0.9mm OFNR 1M Yellow, tight buffer

SKU 01STUG2J50.9TY1.0M Category UPC: 8.47673E+11

$1.80

Description

Fiber optic pigtail are utilized to terminate fiber optic cables via fusion or mechanical splicing. High-quality pigtail cables, coupled with correct fusion splicing practices offer the best performance possible for fiber optic cable terminations. Fiber optic pigtails are usually found in fiber optic management equipment like ODF, fiber terminal box and distribution box.G.657A1 is the NEW de facto standard for bend-insensitive NDSF SMF for premises cabling, thanks to optimized performance and cost balance. Minimum bending radii can be optimized, but this sacrifices fiber attenuation and cost. ITU-T G.657A1 and A2 are fully compliant with G.652D, and can offer enhanced, low-loss fiber. Bend-insensitive NDSF is defined in ITU-T G.657, with different minimum bending radii characteristics: G.657A1 (10 ?m).

When weighing your options between on-premises and access network fiber replacement or new installation, we highly recommend replacing legacy OS1 with a new bend-insensitive OS2 (ITU-T G.657A1) SMF cabling system to support longer reach with enhanced link performance.Single-mode fiber provides users with a greater transmission rate in addition to nearly 50 times longer distance as opposed to multi-mode fiber. However, single-mode fiber is more expensive than multi-mode fiber. Among all the differences between single-mode and multi-mode fibers, the most basic is the size difference in the fibers? core as well as the associated loss or attenuation and fiber bandwidth. The ST connector remains one of the most widely used connectors especially for multimode networks such as college campuses and most buildings. The connector is very easy to use due to its spring-loaded, keyed, and ?push in and twist? mechanism within its design. The ST connector features a bayonet mount and a long cylindrical 2.5mm ceramic or polymer ferrule to hold the fiber.UPC connectors are polished with no angle. UPC connectors are not exactly flat, however; they have a slight curvature for better core alignment. Another more obvious difference is color. UPC connectors are blue while APC connectors are green.

Additional information

Weight 1.1 lbs
Dimensions 1 × 10 × 8 in
