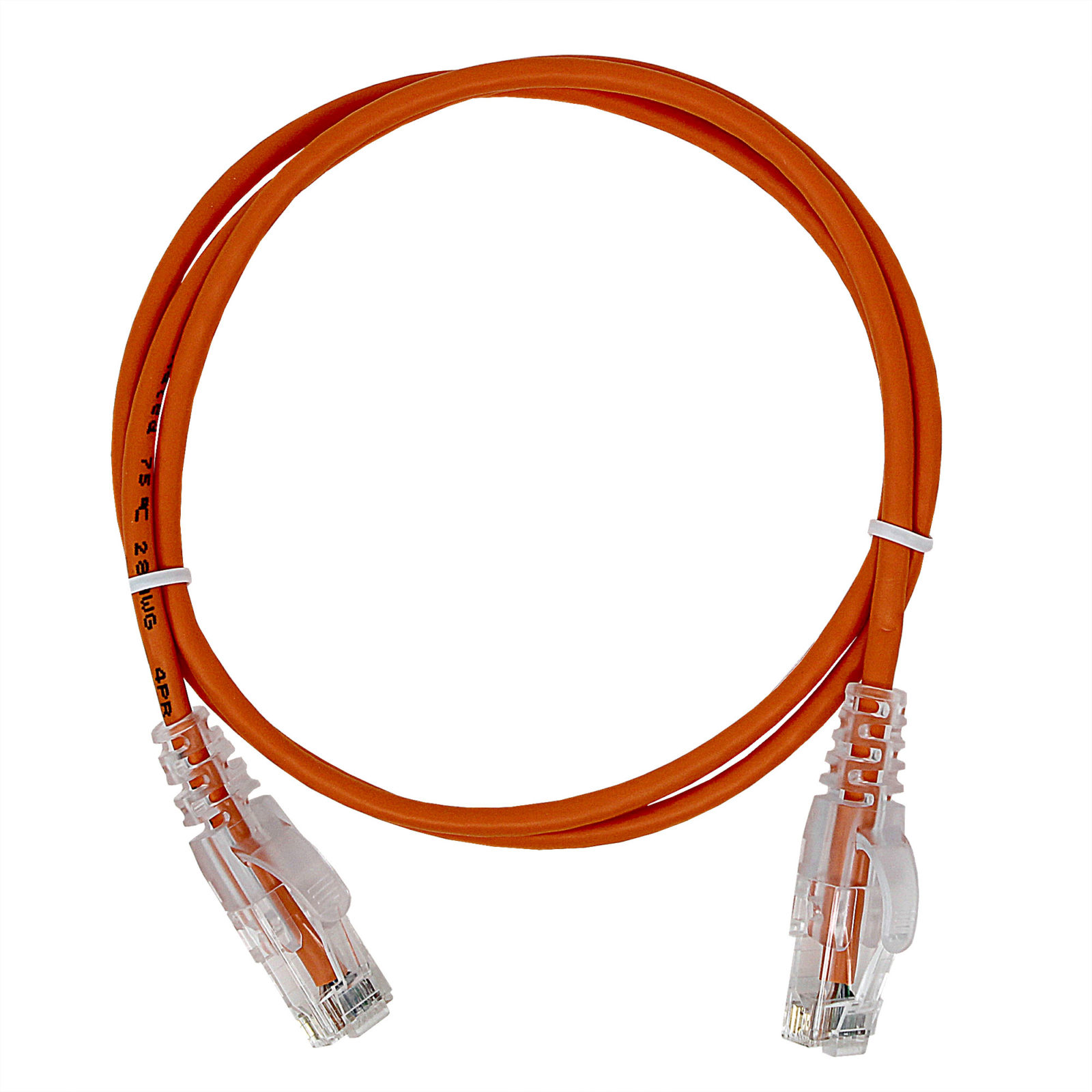

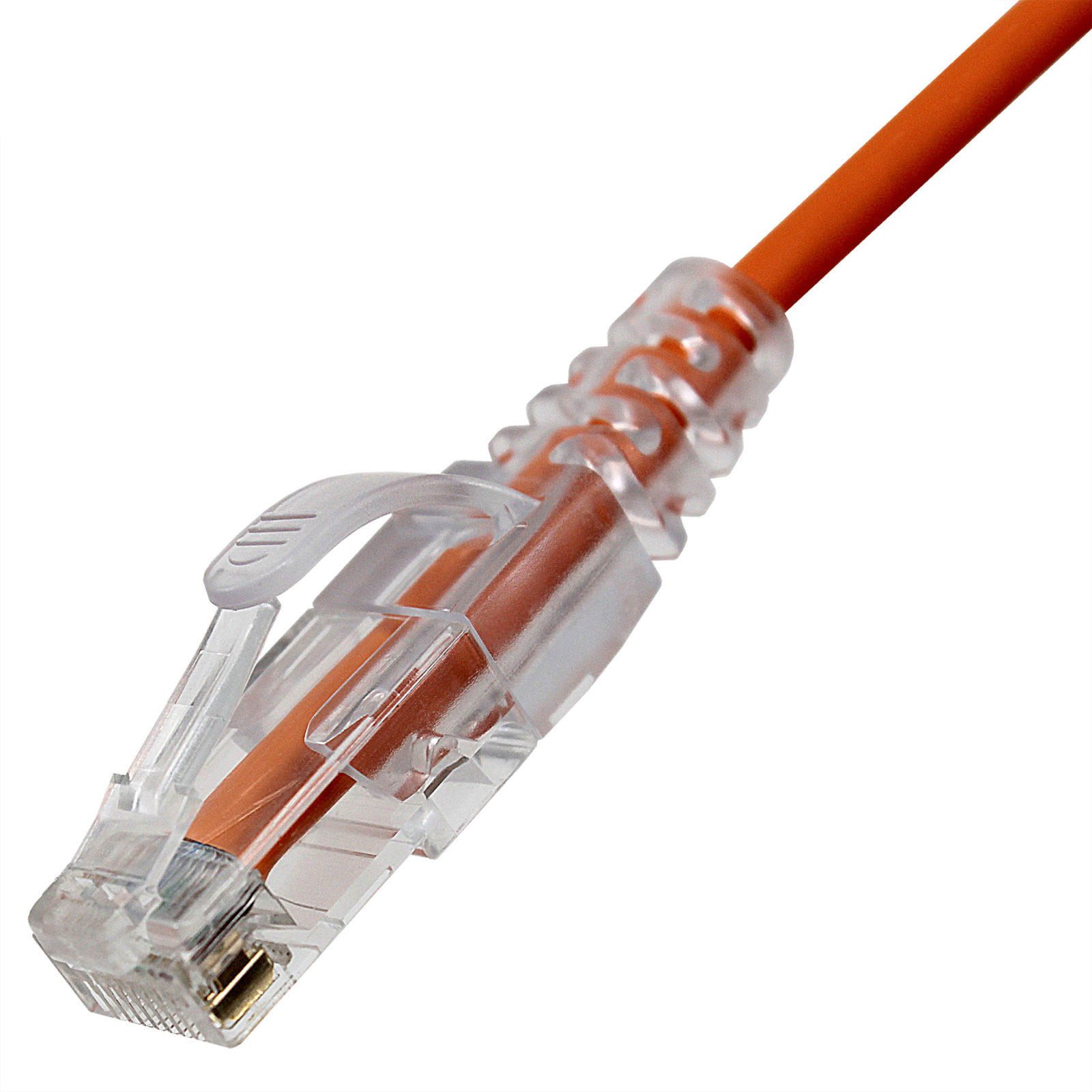

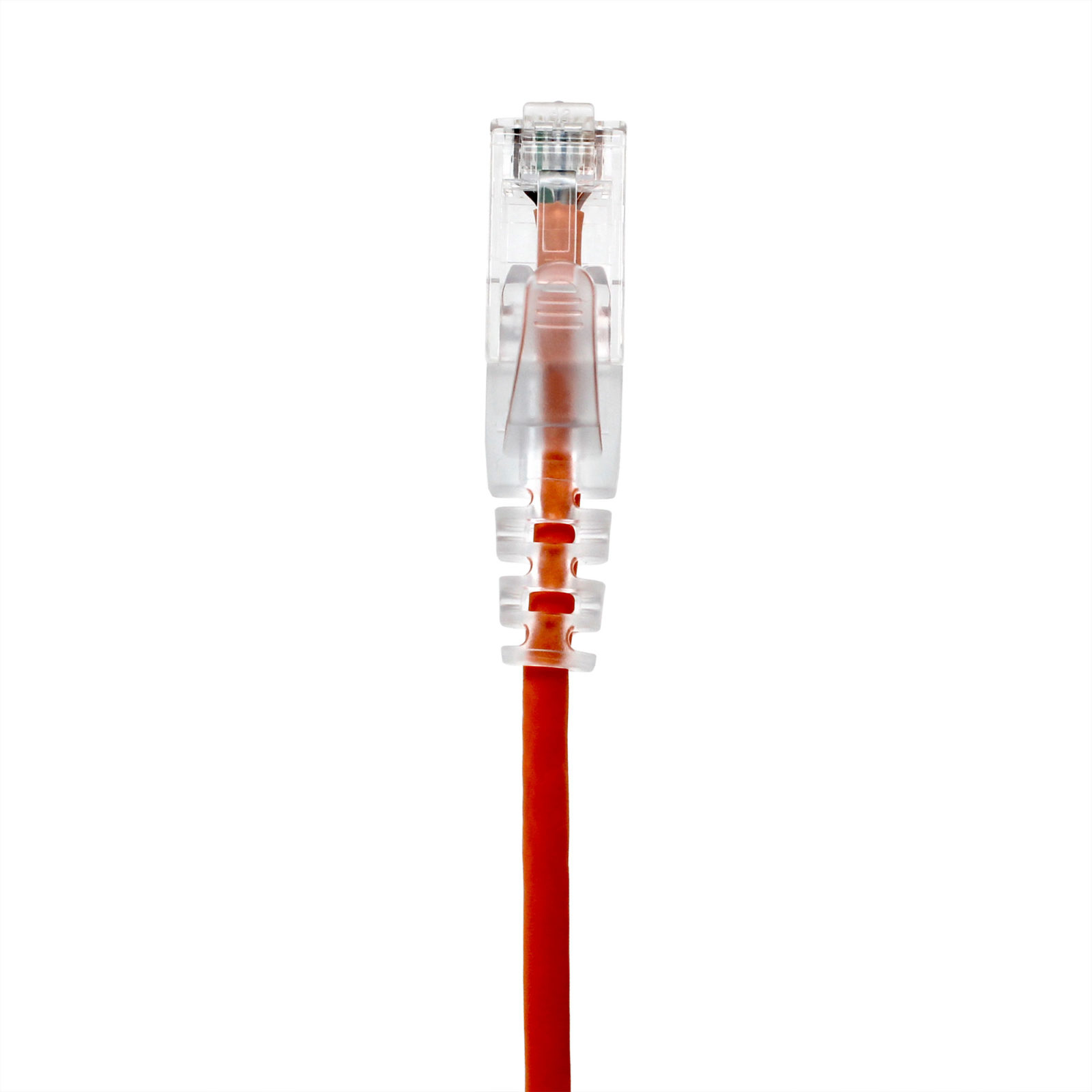

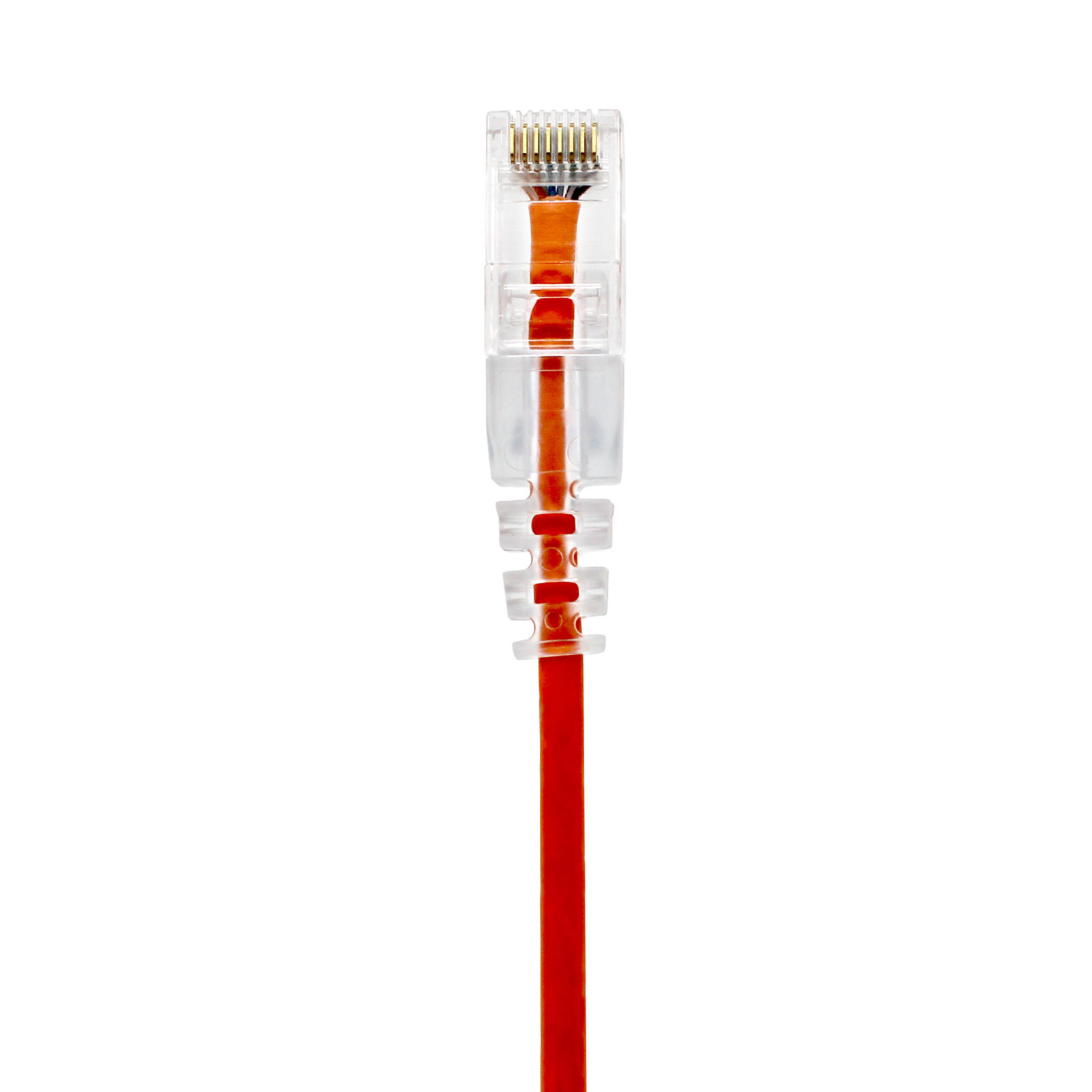

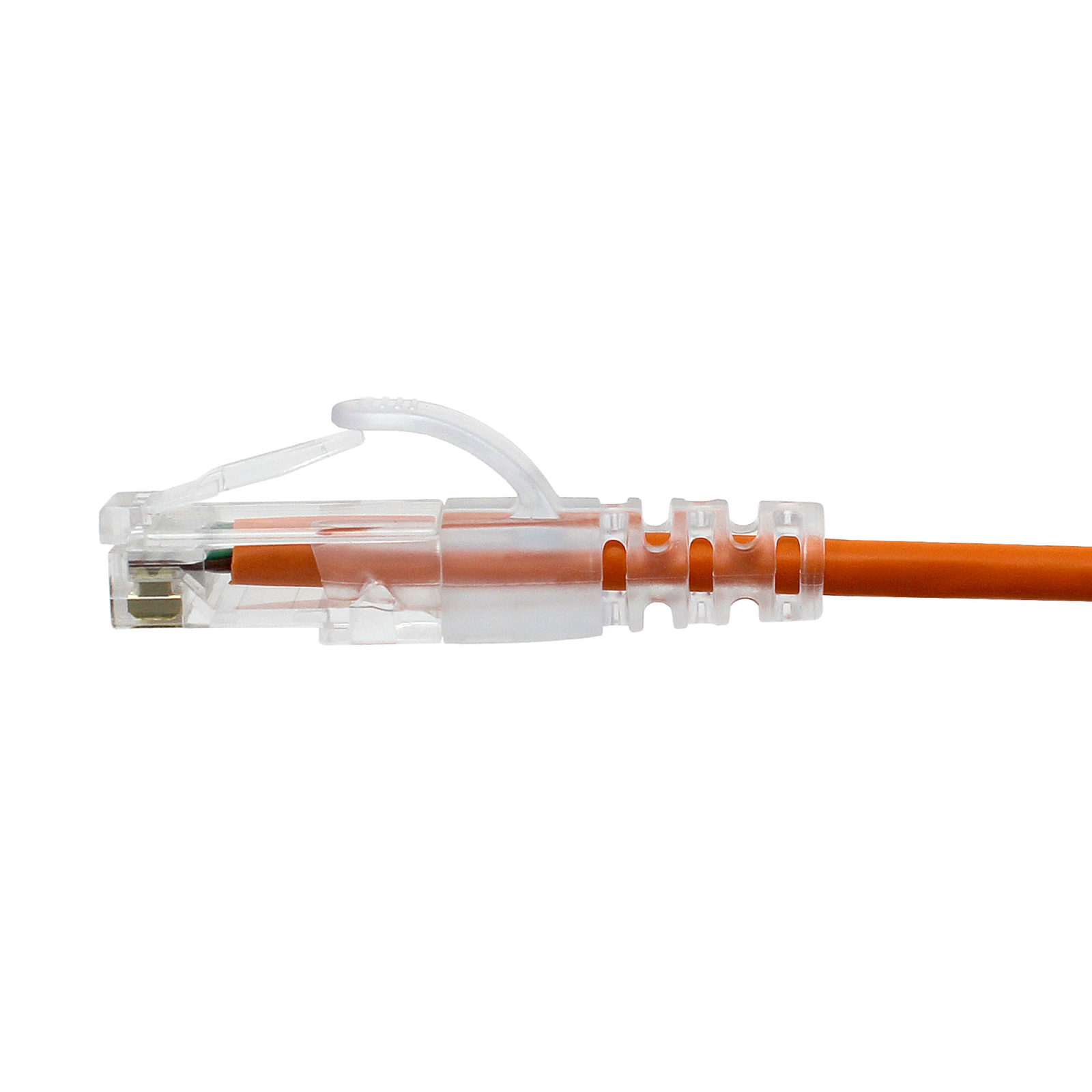

CAT 6 Slim Patch Cable, UTP Stranded, Finger Boot, Orange

CAT 6 Slim Patch Cable, UTP Stranded, Finger Boot, Orange

SKU UL728-8XXOR-CG Category Tags ,

Description

Slim Category 6 patch cables feature a smaller OD jacket for space savings and better air flow in dense installation environments. All Slim Cat6 cables feature a rugged clear finger boot that protects the plug clip and are available in a variety of lengths and colors.

  • 0.15in cable OD
  • CM rated jacket
  • Flexible, stranded 28 AWG UTP
  • Flush boot design
  • Protected RJ45 clip
  • Superior bend radius
  • Backwards compatible with CAT 5e or CAT 6 systems
  • Slim CAT 6 – 28 AWG cable conforms to all performance standards and passes channel testing

Shaxon offers CAT 6 Slim Jacket cables in custom lengths and bundles for your installation needs.

CATEGORY 6

Category 6 cable, commonly referred to as Cat 6, is a standardized twisted pair cable for Ethernet and other network physical layers that is backward compatible with the Category 5/5e and Category 3 cable standards. The cable provides performance of up to 250 MHz and is suitable for 10BASE-T, 100BASE-T, and 1000BASE-T for distances of up to 100 meters, and 10GBASE-T for distances up to 55 meters.

CABLING STANDARDS

Network cabling standards are used internationally and are published by ISO/IEC, CENELEC and the Telecommunications Industry Association (TIA). Since 1995, solid-conductor UTP cables for backbone cabling is required to be no thicker than 22 AWG and no thinner than 24 AWG, or 26 AWG for shorter-distance cabling.

Additional information

Weight N/A
Dimensions N/A
Length

, , , , , , , , , , , , , ,

Color
