Description

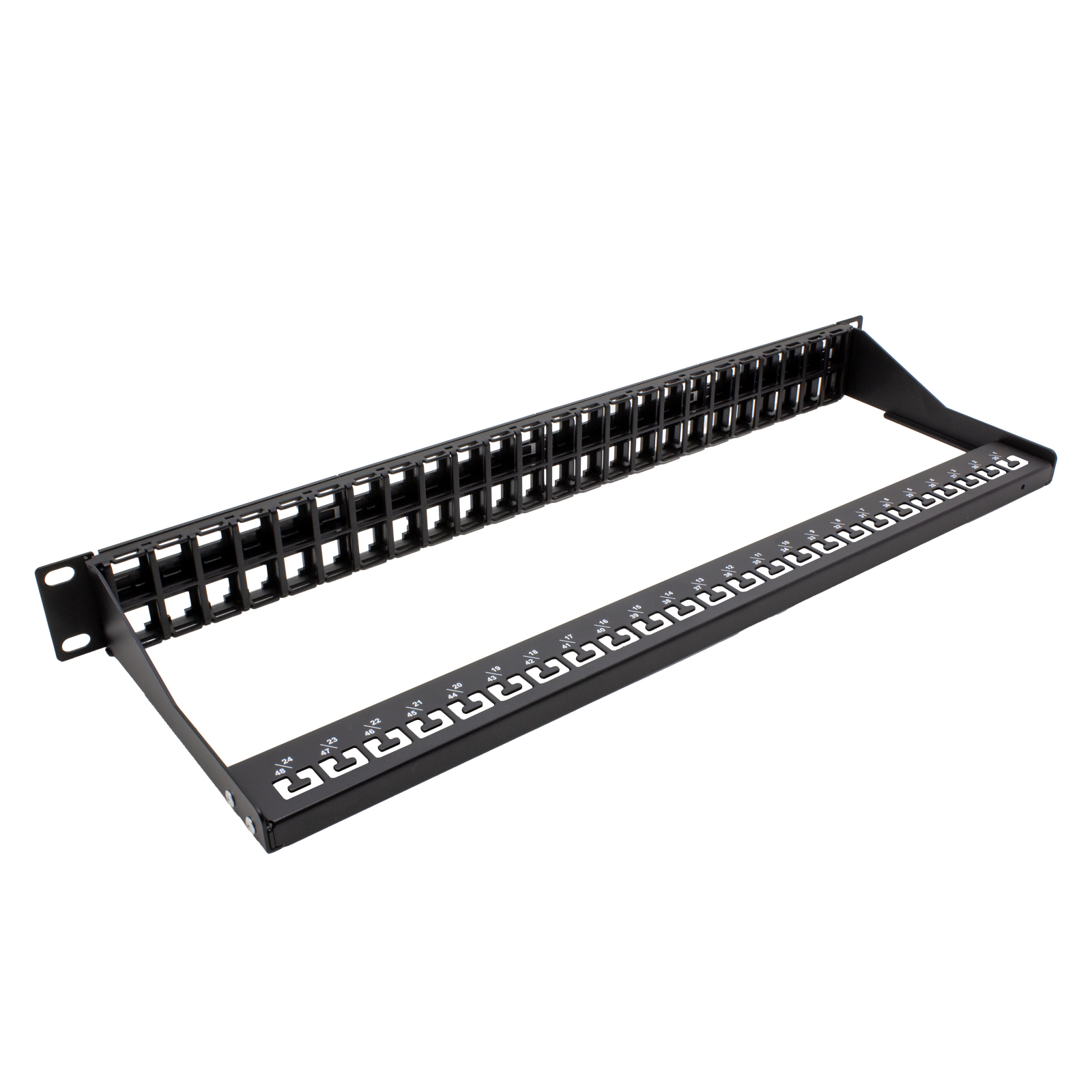

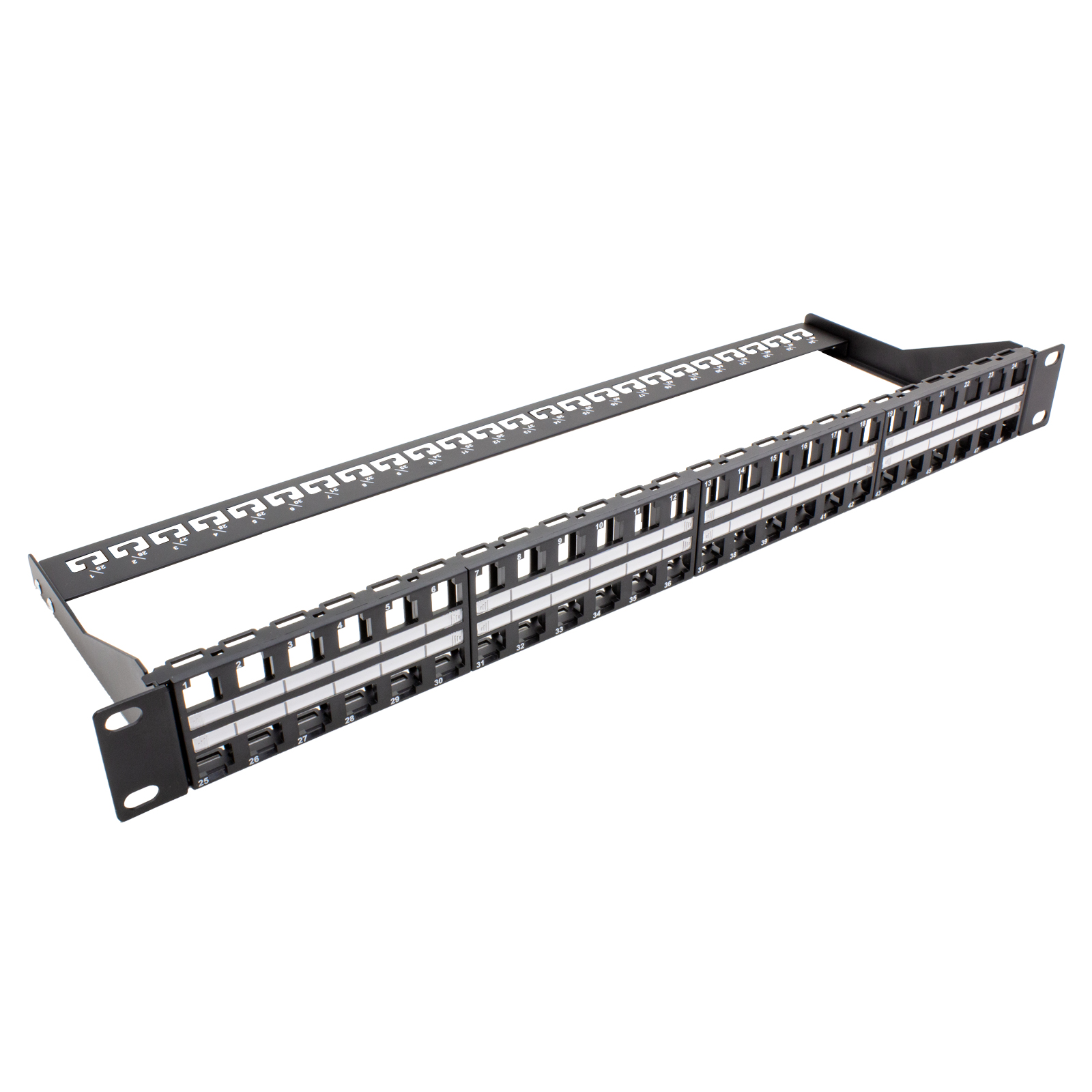

48 Port Ultra High Density 1U Premium unloaded keystone panel with one wire management bar 1.75″H x 19″W x .50″D (with wire mgmt bar 6.00″D)

Shaxon’s Premium Ultra High Density Unloaded Keystone Feed-through Panels feature 48  Keystone Ports designed to be used with various Keystone media types. Our premium design features removable plastic covers to access writable port designations strips and included wire management bars. Our 48 Port ultra high density keystone panels have enough space between the ports that keystone style jacks with a small “shoulder”* can be used giving more flexibility for keystone media choices *(.71″ is the maximum keystone jack width)

Features and benefits:
Ultra High density design for max port density
Removable plastic covers to access writable port designations strips
Included wire management bars with tool-less assembly
Compatible with most keystone jacks with a maximum .71 ” width
Designed for flush mounting of jacks
** Please note that this panel features tab up (top row) and tab down (bottom row) design for maximum density loading.
** this panel design insets the Jack approximately .11 inches from the face of the panel. Most short body plugs with a bump style boot will snap in fine but the bump will be in direct contact with the face of the panel making it more difficult to unplug the cable. Almost all style of long body ( regular) RJ45 plugs and their corresponding boots will not have any issue being easy to unplug. Contact us if you have any questions about your specific application.
