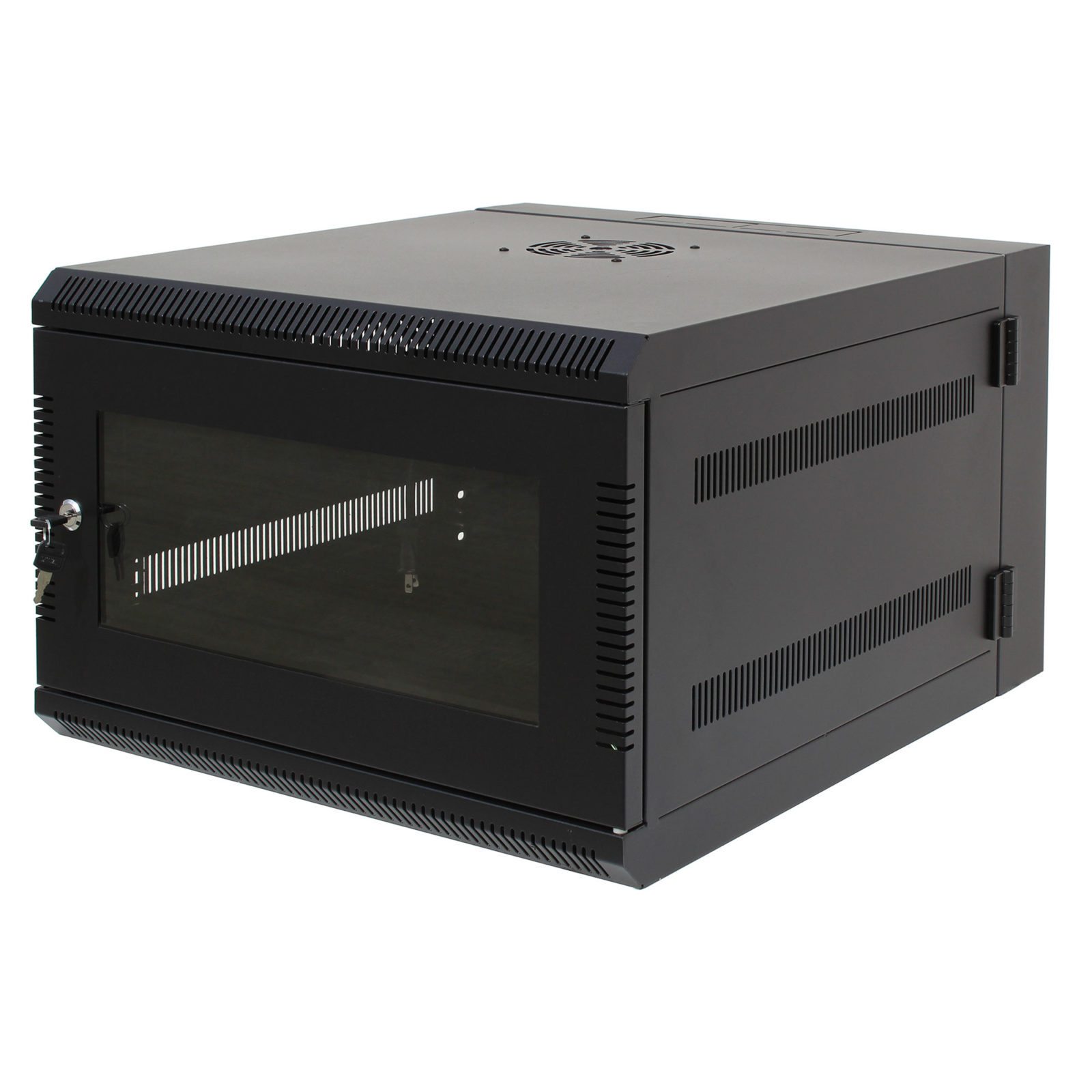

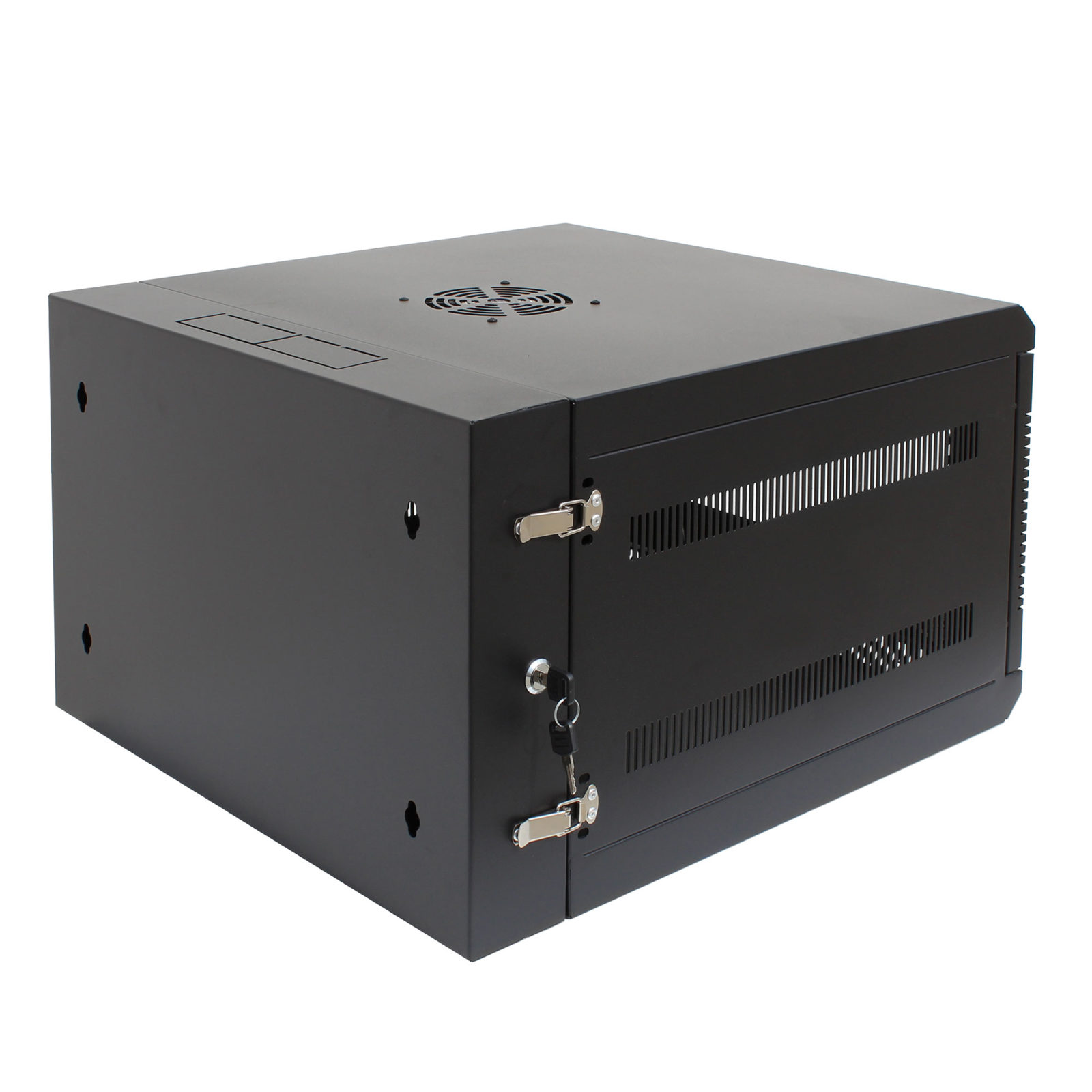

Shaxon’s wall mount cabinets are a high quality, economical solution for data center and server/computer room applications with limited floor space. Multiple access points and a generous amount of rack hardware included with each wall mount cabinet make installing equipment simple and get you off to the right start. Our cabinets ship fully assembled and ready to install.
- EIA/ECA-310-E (revision of EIA-310-D) compliant
- 21 inch depth, used for all 19 inch wide EIA equipment
- Supports up to 100 lbs when properly secured with the included (4) wall mounting screws
- Ships fully assembled to save time!

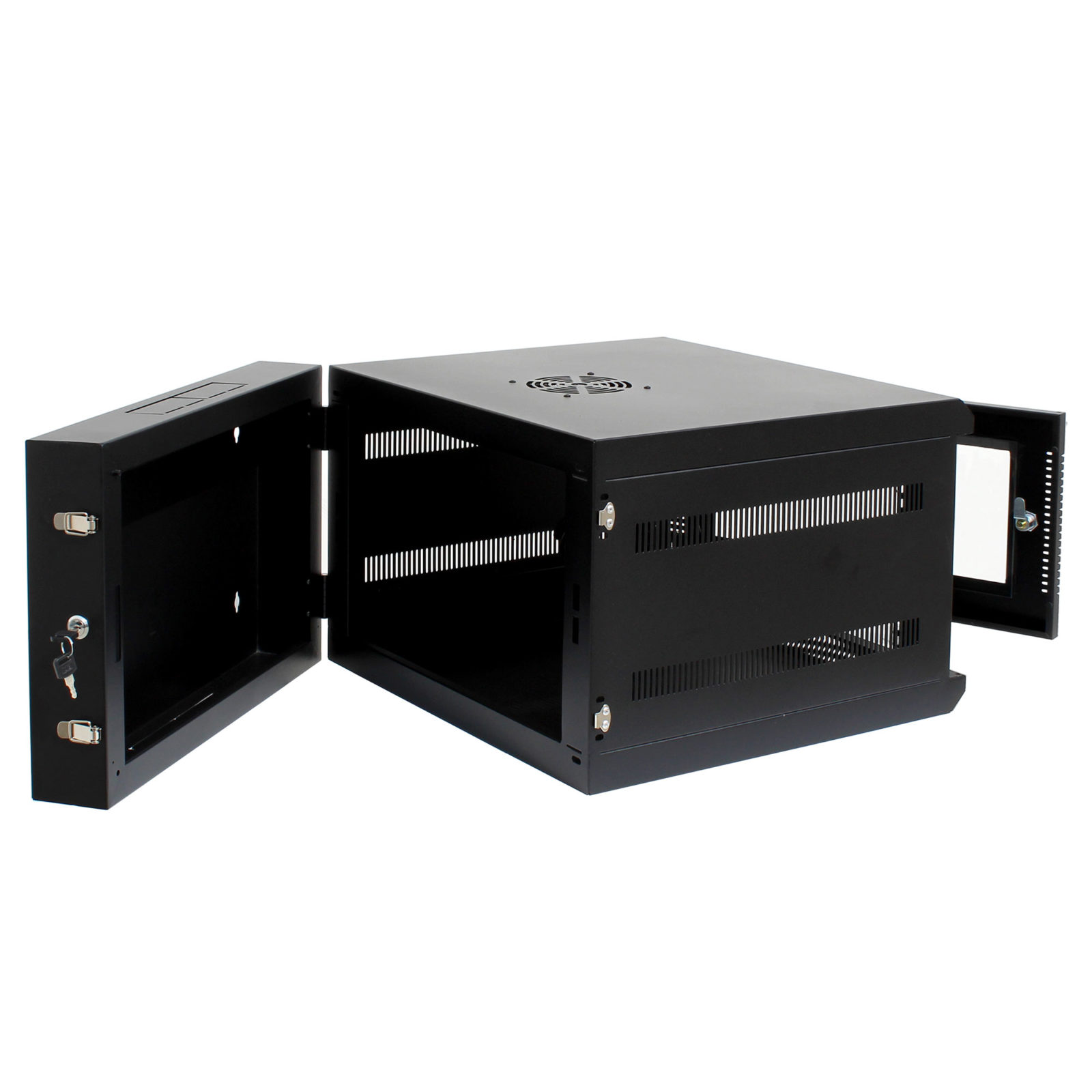

- Front door is removable and reversible for flexibility in mounting options
- Shatter resistant Plexiglass front window allows easy monitoring with cabinet door closed or locked
- Dual hing swing unit provides easy access to rear of equipment
- Vented top, bottom, and side panels for proper air circulation

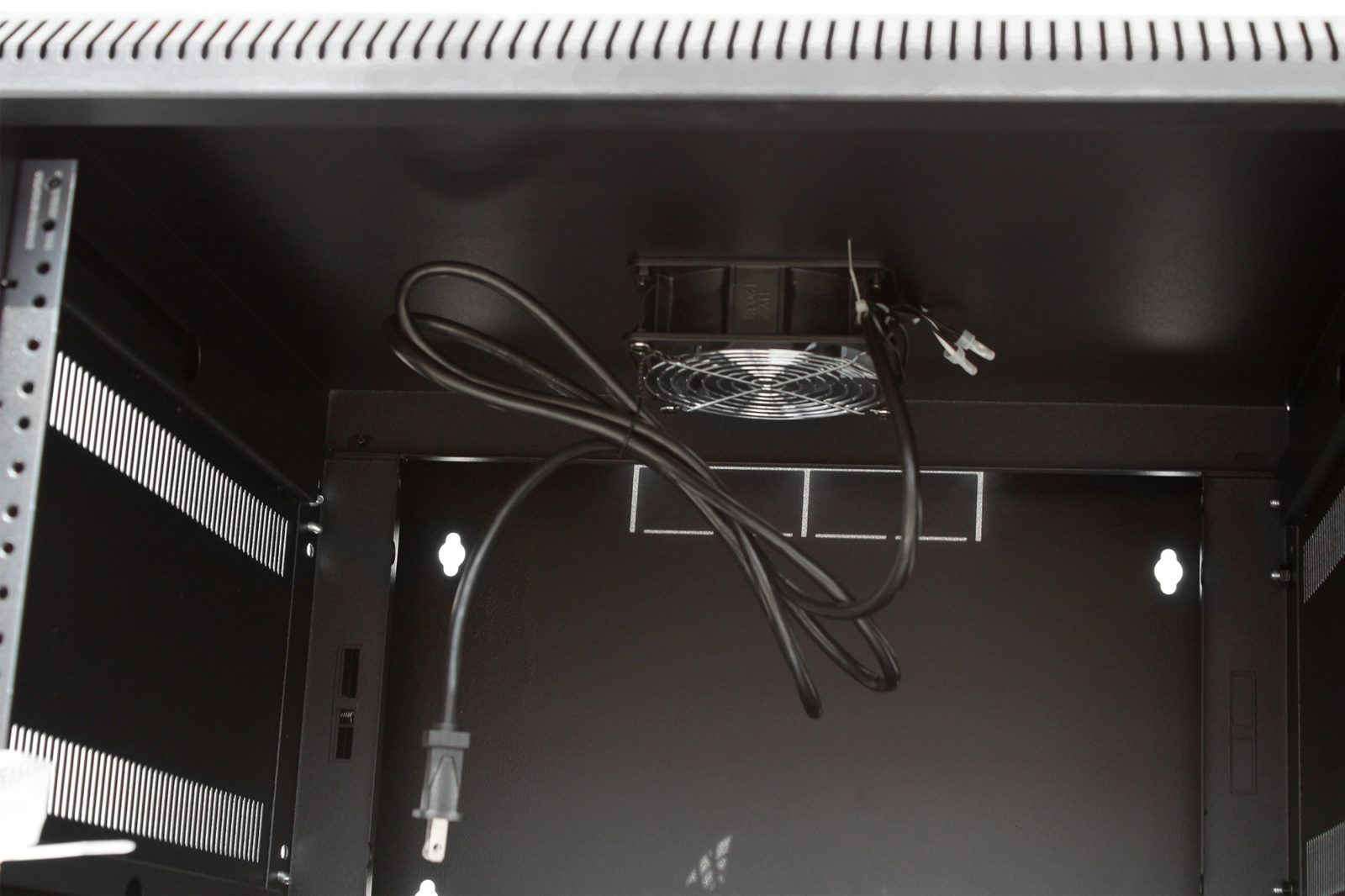

- Integrated exhaust fan
- Top and bottom round (4) 2.38 and 0.98 inch knockouts to accommodate EMT and conduit sizes
- Mounting hardware included: (12) #12-24 screws and (12) washers
- Lockable for added security
- Dimensions (inches): 20.5 x 23.2 x 13.8
- Product weight: 37.47lbs
- Packaged weight: 40.73lbs
